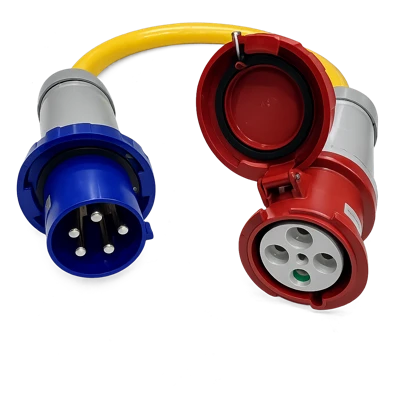

Adapter or Pigtail, Plug 208V 100 Amp 3-Phase Male 5pin to Connector 480V 100Amp 3-Phase Female 4pin, IP67, IEC60309 Watertight Weatherproof

NORMALLY USED to CONNECT a Multivoltage Input Frequency Converter or a Multivoltage Input Transformer to 208V Three-phase.

This adapter only allows to take 208V 3-phase power through a 480V 3P/4W connector, "without having to change the plug at the end of the shore power cord".

IMPORTANT:

• This adapter is designed for connection or pinout compatibility only.
• It does not convert voltage or frequency.
• Ensure that both, power source and equipment, are electrically compatible before use.

WHAT DOES THIS ADAPTER INCLUDE ?

• MALE:        208V  3-phase 4P/5W - 5 PIN

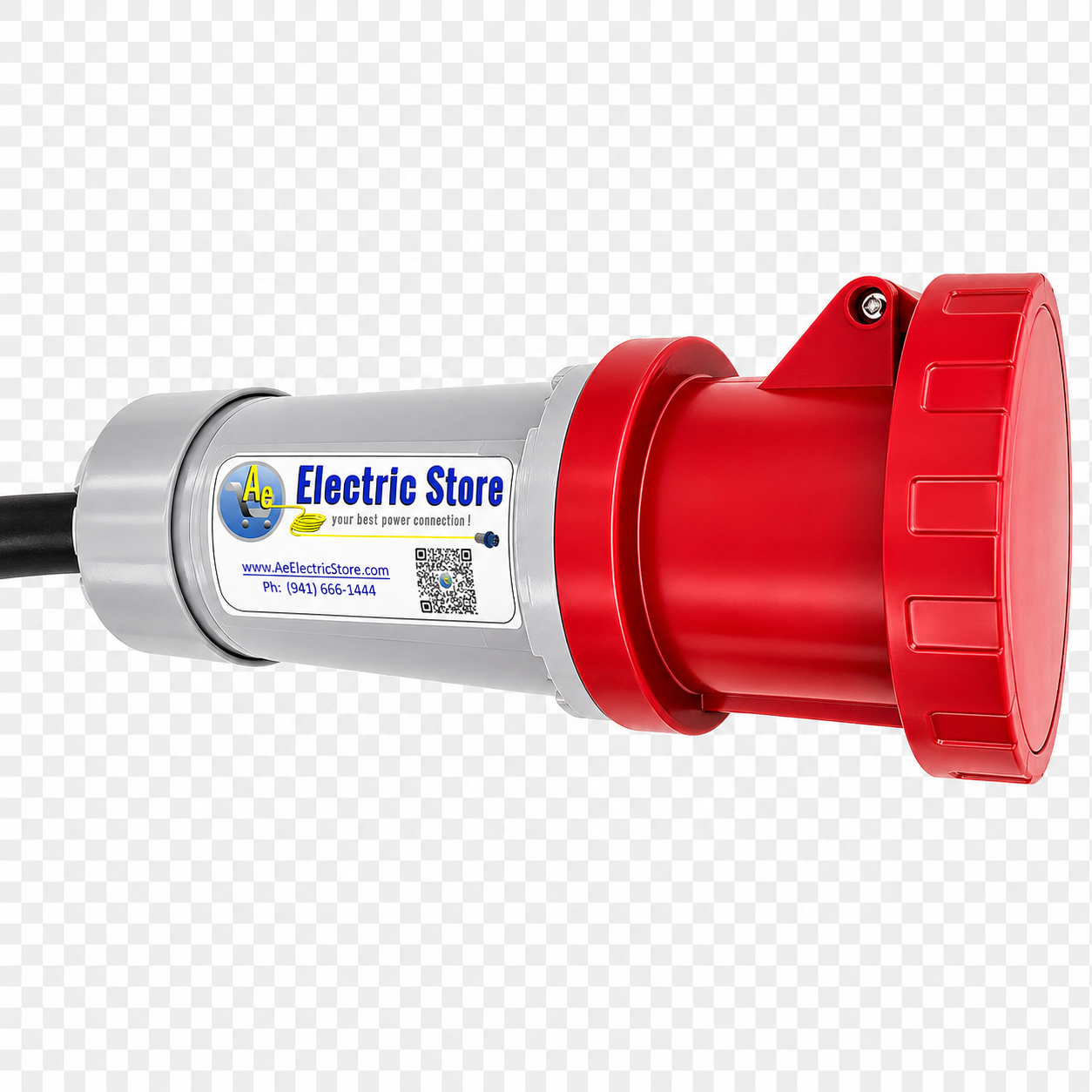

• FEMALE:    480V  3-phase 3P/4W - 4 PIN
• LENGHT:    5 feet (total)

MAKES COUPLING WITH:

• Receptacle SCM5100R9W (or equivalents) on one side and
• Plug SCM4100P7W (or equivalents) on the other side

STANDARDS AND LAWS
UL 1682 [American Standard] Plugs, Receptacles, and Cable Connectors of the Pin and Sleeve Type and MIL-C-5756C: 600-volt heavy duty, portable, power, single and multiconductor, electrical cable for severe flexing service IEC 60309-1 (1999) [International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements IEC 60309-2 (1999) [International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories UL 486E [American Standard] Equipment wiring terminals for use with aluminum and/or copper conductors CSA C22.2 No. 182.1 (1988) [Canadian Standard] Industrial Locking Type, Special Use Attachment Plugs, Receptacles, and Connectors, Wiring Products CSA C22.2 No. 65-93 [Canadian Standard] Wire connectors wiring products DIRECTIVE LOW VOLTAGE 2014/35/UE [European Directives] Low Voltage Directive
