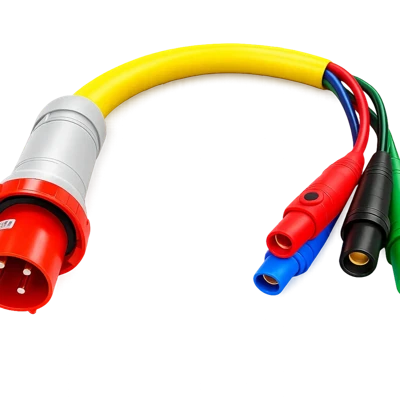

Adapter or Pigtail, Plug 240V (125/250v) 100A Single Phase 4pin Male Pin & Sleeve IEC60309 to 100 Amp Cam Lock or Single Female Connectors, Watertight Weatherproof

NORMALLY USED to CONNECT  a shore cord with set of 100 Amp Cam Lock or Single mono-cable plugs to an IEC-60309 Pin and Sleeve receptacle 240V (125/250v) single-phase 3 poles 4 wires, installed on a dock pedestal.

IMPORTANT:

• This adapter is designed for connection or pinout compatibility only.
• It does not convert voltage or frequency.
• Ensure that both, power source and equipment, are electrically compatible before use.

WHAT DOES THIS ADAPTER INCLUDE ?

• MALE:         125/250V 1-Ph 100A 4PIN                            Pin & Sleeve Plug
• FEMALE:    240V 1-Phase max 400Amp                                cam locks or single females
• LENGHT :   5 feet (total)

MAKES COUPLING WITH:

• Receptacle SCM4100R12W (or equivalents) on one side and
• Plug Single Male Cam Lock 400A (or equivalents) on the other side

STANDARDS AND LAWS

UL 1682 [American Standard] Plugs, Receptacles, and Cable Connectors of the Pin and Sleeve Type and MIL-C-5756C: 600-volt heavy duty, portable, power, single and multiconductor, electrical cable for severe flexing service IEC 60309-1 (1999) [International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements IEC 60309-2 (1999) [International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories UL 486E [American Standard] Equipment wiring terminals for use with aluminum and/or copper conductors CSA C22.2 No. 182.1 (1988) [Canadian Standard] Industrial Locking Type, Special Use Attachment Plugs, Receptacles, and Connectors, Wiring Products CSA C22.2 No. 65-93 [Canadian Standard] Wire connectors wiring products DIRECTIVE LOW VOLTAGE 2014/35/UE [European Directives] Low Voltage Directive
