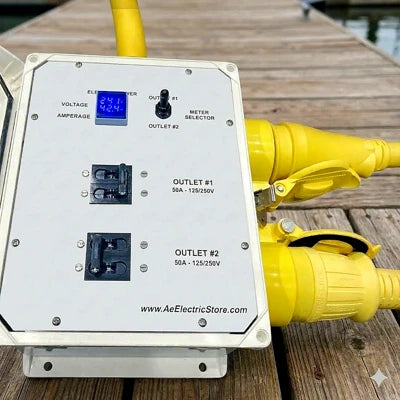

Ae SPLITTER Box, Input 100A 125/250V to two 50A 125/250V (240/120v) with Voltmeter and Ammeter built-in MOD 10200
Ae SPLITTER Box, Input 100A 125/250V to two 50A 125/250V (240/120v) with Voltmeter and Ammeter built-in MOD 10200
Couldn't load pickup availability

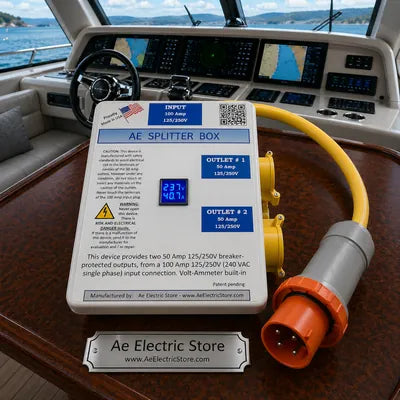

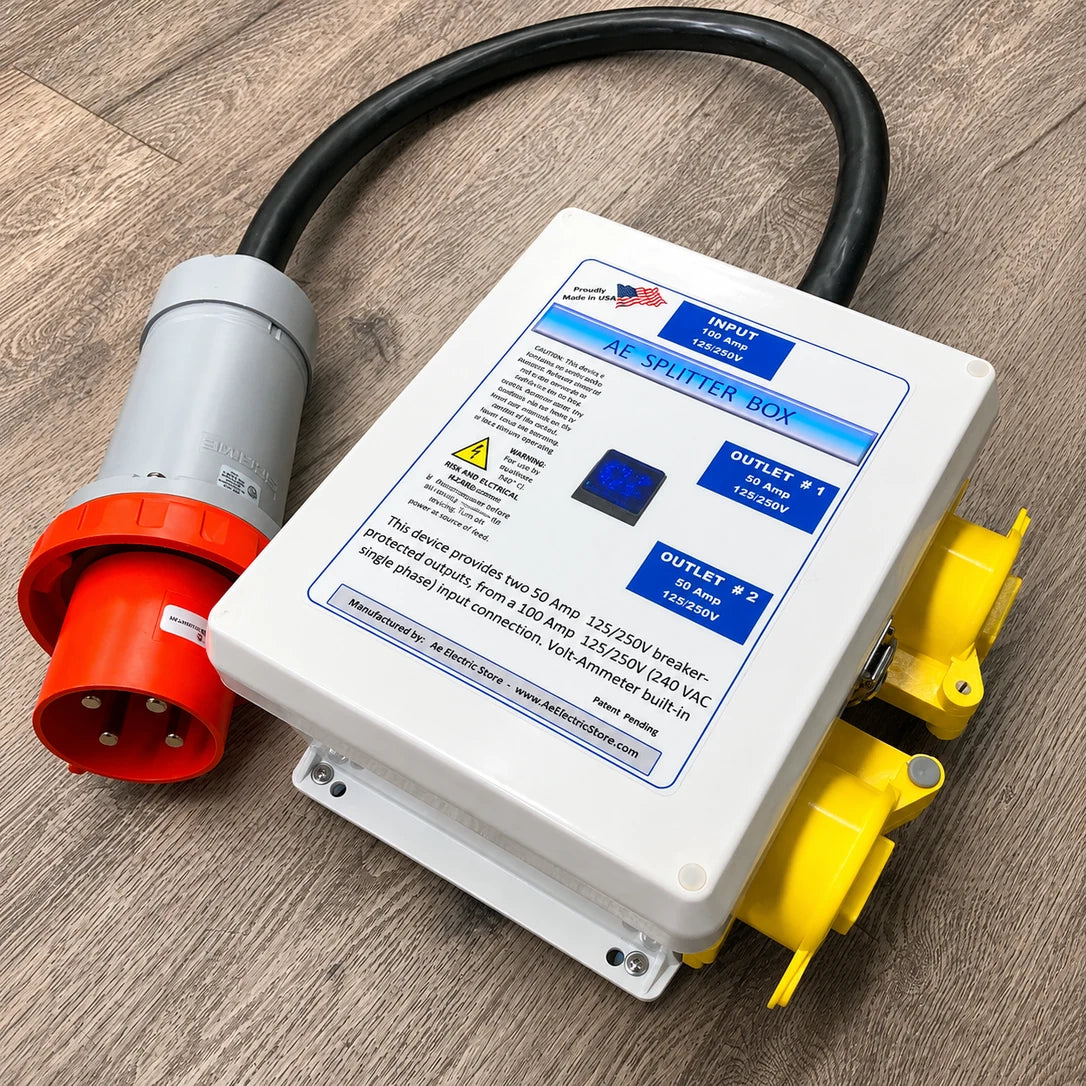

Delivery two 50 Amp 125/250V power outputs, from an input 100 Amp 125/250V.
This AE SPLITTER 100A Box offers the following characteristics:
- Breaker protection on each outlet. Two 50A breakers protect the cables connected to each outlet, to prevent damage from overcurrent or short circuit on the outputs.
- DO YOU WANT TO BE SURE YOUR BOAT IS PROTECTED ?
- Don't use just any splitter that lacks individual breakers for protection.

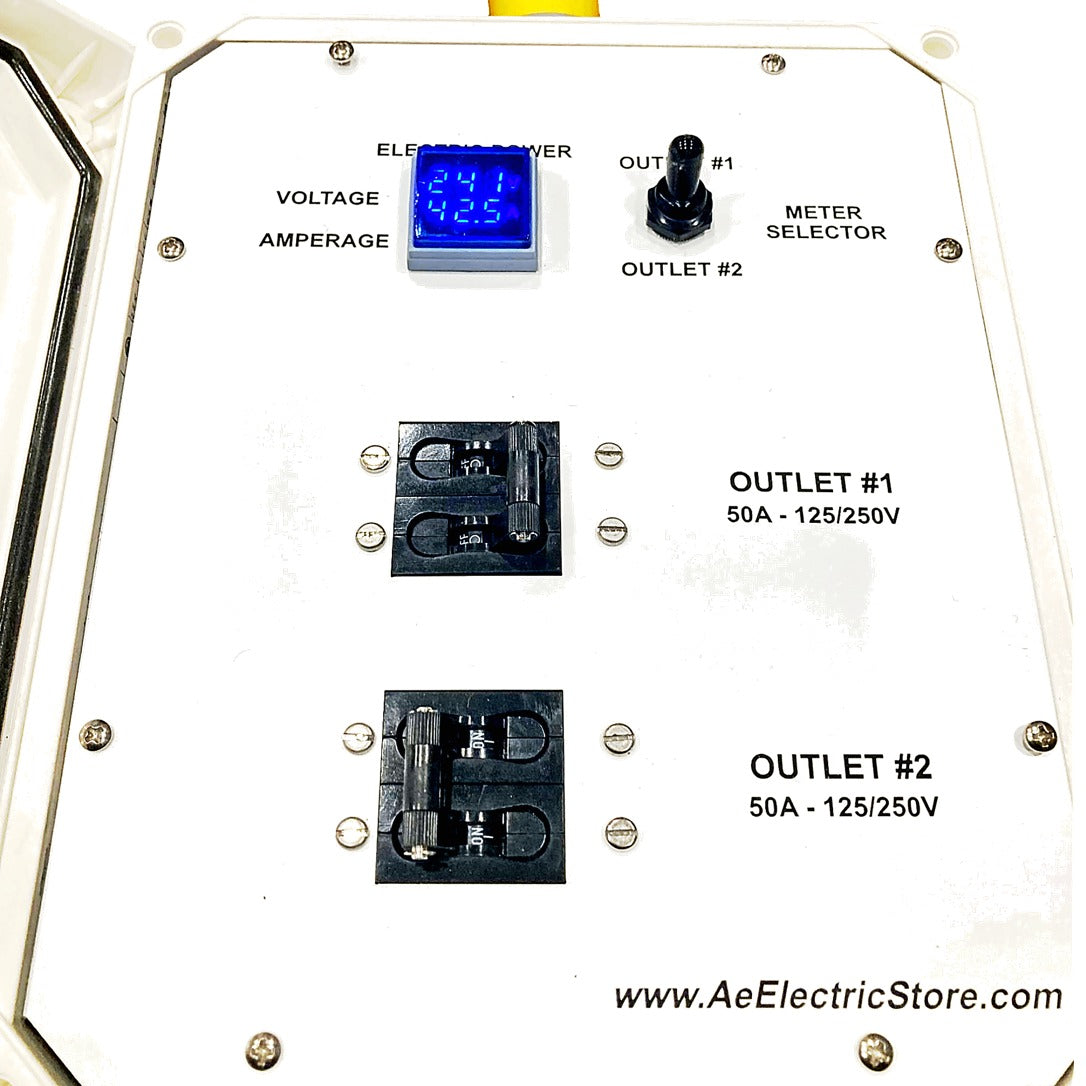

- Digital voltmeter and ammeter. Allows monitoring the voltage that is delivered through the 50A Outlets or receptacles and verifying the current consumption at all times.
- Two 50A 125/250V output receptacles fully covered and waterproof. Adds safety and avoids the humedity can go inside to the receptacles
- Works as an adapter between a 100A pedestal receptacle and a 50A shore cord plug. This can be taken advantage of when a dock pedestal with a single phase 50A 240V (125/250V) outlet is not available.

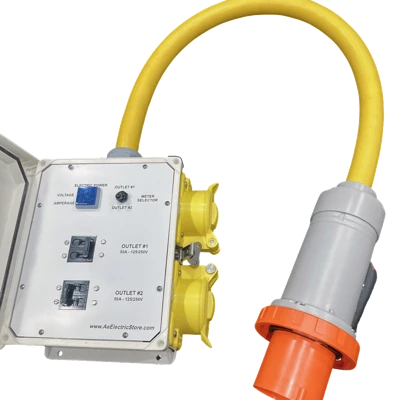

- Correct input power cable size. A 4 feet of cable with a 100A 125/250v plug, will make it easy to connect the Splitter box on any pedestal receptacle.
- Lighter and smaller / comfortable. With smaller dimensions compared to other Splitter, our Ae Splitter Box is more practical to store when is not in use.
NORMALLY is USED to CONNECTIONS with 240V/120V Single-phase (Rated voltage 125/250V)
To CONNECT: Place the 100A power pedestal breaker in the OFF position. Insert the 100A plug into the receptacle on the pedestal. With the 50A Splitter box breakers in the OFF position, connect the cord plugs into outlets #1 and #2 on the side of the Splitter box. Finally, turn on the 100A pedestal breaker and then turn on the 50A Splitter box breakers.
To DISCONNECT: Turn OFF each 50A Splitter box breaker and disconnect the plugs of the outlets #1 and #2. If you want disconnect completely the Splitter box, place OFF the 100A pedestal receptacle breaker and unplug the input Splitter box plug
APPLICABLE STANDARDS AND LAWS FOR PARTIES INVOLVED
UL 1682 [American Standard] Plugs, Receptacles, and Cable Connectors of the Pin and Sleeve Type and MIL-C-5756C: 600-volt heavy duty, portable, power, single and multiconductor, electrical cable for severe flexing service IEC 60309-1 (1999) [International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part 1: General requirements IEC 60309-2 (1999) [International Standard] Plugs, socket-outlets and couplers for industrial purposes. Part: 2: Dimensional interchangeability requirements for pin and contact-tube accessories UL 486E [American Standard] Equipment wiring terminals for use with aluminum and/or copper conductors CSA C22.2 No. 182.1 (1988) [Canadian Standard] Industrial Locking Type, Special Use Attachment Plugs, Receptacles, and Connectors, Wiring Products CSA C22.2 No. 65-93 [Canadian Standard] Wire connectors wiring products DIRECTIVE LOW VOLTAGE 2014/35/UE [European Directives] Low Voltage Directive
